Jib cranes for sale

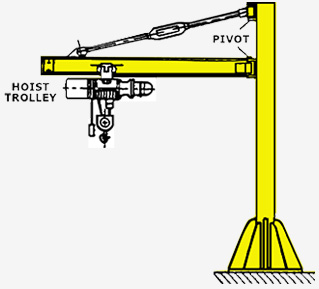

What is a jib crane? A jib crane is a type of crane where a horizontal member (jib or boom), supporting a moveable hoist, is fixed to a wall or to a floor-mounted pillar. Jib cranes are used in industrial premises and on military vehicles. The jib may swing through an arc, to give additional lateral movement, or be fixed. Similar cranes, often known simply as hoists, were fitted on the top floor of warehouse buildings to enable goods to be lifted to all floors. -Wikipedia

In order to meet you different requirement, we have several jib cranes for you, like portable jib crane, floor mounted jib crane and wall jib crane. Established in August 2008, we have won reputation at home and abroad. Give us an opportunity, we promise you a quality jib crane with competitive price.

Catalogue

Floor mounted jib crane for sale

The BZD jib crane can be divided in to portable jib crane and floor mounted jib crane. The former one is applied to lift relatively light objects, while maxima lifting ability and maxima radius of the latter one are 20 tons and 12 meters respectively. The mobile jib crane is more flexible, and grater adaptability and inevitable to efficient automatic production line to make sure smooth condition.

Applications of floor mounted jib cranes

Floor mounted jib crane, light lifting equipment of new generation , is produced by Tianjin Anson International Co., Ltd by reference to the West Germany to meet the modernization. In according to worldwide customers' requirement, the floor mounted jib crane possesses edges of unique design, reasonable structure, easy service and operation. Thanks to its energy saving and high efficiency, floor mounted jib crane is wildly applied to factories, workshop production line, assembly line, warehouse and docks.

Advantages of floor mounted jib crane

Equipped with high reliability JPKK type electric chain hoist, the floor mounted jib crane is particularly suitable for short distance, frequent usage and intensive operation. Thanks to its features of high efficiency, energy saving, easy operation, small size and convenient

maintenance, floor jib crane is well received at home and abroad. Electric chain hoist / wire rope electric hoist can lift and run on the beam, and arm beam can ratate driven by gear wheel, which is driven by reducer on rotary device, and electrical control box will be mounted on the chain hoist.

Floor jib crane is controlled by remote control with eight buttons to achieve speed, direction and height as well as trolley speed.

Tips:

■ Do not press the speed buttons simultaneously.
■ Do not press the switch buttons of motor simultaneously.
■ No people standing under the working arm.
■ Do not drag heavy objects.
■ No overload lifting.

For easy transport, floor mounted jib crane are disassembly packed. Anson is responsible for installation, or users can install by yourselves in accordance with instruction with the machine. We also provide floor mounted jib crane with two arms, if you are interested contact us ASAP.

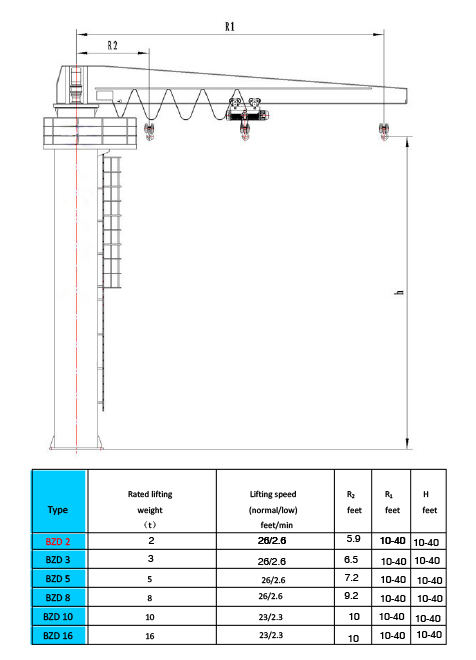

Specification of floor mounted crane

Type	Rated lifting weight (t)	Lifting speed (normal/low) feet/min	R2 feet	R1 feet	H feet
BZD 2	2	26/2.6	5.9	10-40	10-40
BZD 3	3	26/2.6	6.9	10-40	10-40
BZD 5	5	26/2.6	7.2	10-40	10-40
BZD 8	8	26/2.6	9.2	10-40	10-40
BZD 10	10	23/2.3	10	10-40	10-40
BZD 16	16	23/2.3	10	10-40	10-40

Download

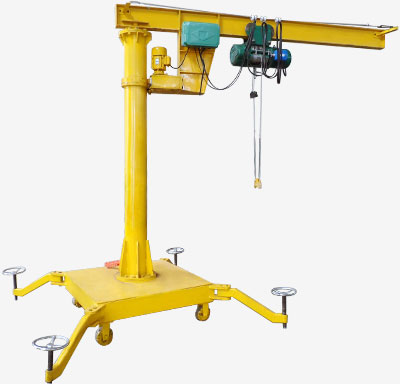

Portable jib crane

Unique design allows for easy transportation of portable jib crane with fork truck. Standard base included with jib crane is not filled with concrete. Standard base includes instructions for proper filling with concrete. Base may be ordered pre-filled with concrete for immediate use. The ordinary jib crane can only be used at one fixed location and is limited in flexibility that the new portable crane offers. One crane that can be used at many locations adds great versatility and savings by not needing many cranes at different locations, and it also saves space on the shop floor. The Portable Jib Crane is also convertible and can be detached from the base and mounted to the floor.

The crane features a 360° boom rotation manually operated and there is an optional powered boom rotation available. The crane can be equipped with a manual hoist or electrical powered hoist, 110 volt single phase or 240-480 volts, 3 phase. For hazardous areas, air powered pneumatic spark proof hoists are available. Portable Jib Cranes are built of heavy duty industrial welded steel construction for safe and long lasting use. Cranes are available in capacities of 200, 450 or 1000 kgs with a span length of 2 to 4 meters and an under beam height of up to 7.5 meters.

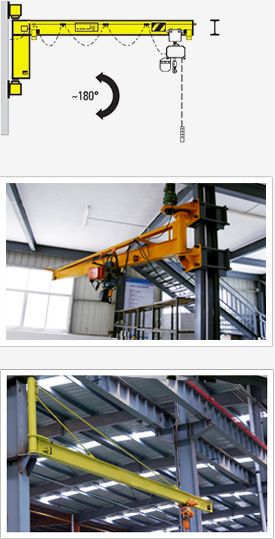

Wall jib crane for sale

Wall jib crane is produced and sold by Tianjin Anson International Co., Ltd by reference to the West Germany. In according to worldwide customers' requirement, the wall mounted jib crane possesses edges of unique design, reasonable structure, easy service and operation. Thanks to its energy saving and high efficiency, wall jib crane is wildly applied to factories, workshop production line, assembly line, warehouse and docks.

Download

Applications of wall mounted jib crane

Wall jib crane is composed of bracket, arm, chin hoist and so on. Fixed it in wall or concrete pillar, according to your demand to rotate. The rotary parts are controlled by both manual operation and electricity. Chin hoist installed on the track used for lifting heavy objects.

Wall mounted jib crane design

Wall mounted jib crane is controlled by remote control with eight buttons to achieve speed, direction and height as well as trolley speed.

Tips:

Wall traveling jib crane

Wall traveling jib crane is a new type of lifting equipment based on wall mounted jib crane. The running rail of wall traveling jib crane is installed in the plant's cement column, which can do vertical movement along the rail. At the same time, the electric hoist can complete the lifting objects both lateral and vertical. It greatly expands the range of operations and floor space.
